Product Information - ZEXEL Nozzle Holders - DLLA...P...

1 Spring

2 Spring

KBAL-P

KBDL-P

KBL2.1-P

KBL2.2-P

KBL2.3-P

KBL2.4-P

KBL2.5-P

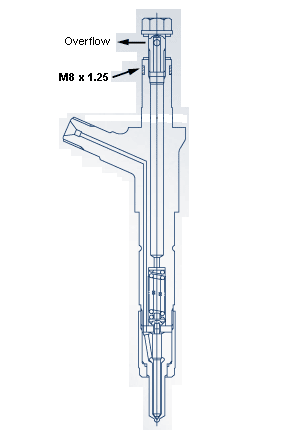

KBDL...P...

Characteristics:

- opening pressure by shim adjustment

Main users:

- Isuzu

Nozzle holder assembly Part number	MFR number	Nozzle holder Type designation	Nozzle Type designation	Nozzle Part number	Nozzle opening presssure	Application
105118-6771	8972293672	48-2260	DLLA152PN284	105017-2840		ISUZU 3LD2
105118-6850	897289293A	48-2260B	DLLA152PN298	105017-2980		ISUZU 4LC2
105118-6910	8972892930	48-2260C	DLLA152PN311	105017-3110	14.7	ISUZU 4LC2
105118-6951	8973148971	48-2260E	DLLA152PN284	105017-2840	14.7	ISUZU 3LD2
105118-6860	16600Z5718	48-2280K1	DLLA150PN304	105017-3040	19.6	NISSAN DIESEL FE6TX
105118-6211	8971345240	48-3230T	DLLA153PN203	105017-2030	18.1	ISUZU 4JB1P
105118-4710	6202133300	48-3300L	DLLA152PN063	105017-0630	22.1	KOMATSU 4D95S
105118-4691		48-3351A	DLLA152PN062	105017-0620
105118-4723		48-3351B	DLLA154PN064	105017-0640	21.6	ISUZU 4BG1
105118-5071		48-3351C	DLLA158PN108	105017-1080
105118-5121		48-3351E	DLLA154PN061	105017-0610
105118-4692	8943193171	48-3352A	DLLA154PN062	105017-0620		ISUZU 4BC2
105118-4724	8944795783	48-3352B	DLLA154PN064	105017-0640	21.6	ISUZU 4BG1
105118-5072	8970126631	48-3352C	DLLA158PN108	105017-1080	18.1	ISUZU 4BC2
105118-5122	8970217031	48-3352E	DLLA154PN061	105017-0610	21.6	ISUZU 4BE1
105118-6750		48-3352F	DLLA156PN280	105017-2800	19.6	DAEWOO DB33T1
105118-5070	8970126630	48-3420F	DLLA158PN108	105017-1080	18.1	ISUZU 4BC2
105118-4722	8944795782	48-3430	DLLA154PN064	105017-0640		ISUZU 4BG2
105118-5091	1153002661	48-3520K	DLLA155PN111	105017-1111		ISUZU 6BG1TC
105118-5120	8970217030	48-3580P	DLLA154PN061	105017-0610		ISUZU 4BE1
105118-5150	8943965642	48-3600	DLLA161PN109	105017-1090	18.1/21.6	ISUZU 6HE1-S
105118-5160	8943887871	48-3610	DLLA158PN113	105017-1130		ISUZU 4HF1
105118-5223		48-3642	DLLA139PN119	105017-1190
105118-5250	8943887872	48-3670	DLLA156PN121	105017-1210	18.1	ISUZU 4HF1
105118-6040		48-3672A	DLLA154PN185	105017-1850	18.1	ISUZU 4HG1
105118-6050		48-3672B	DLLA154PN186	105017-1860	18.1	ISUZU 4HF1
105118-5791		48-3672U	DLLA160PN159	105017-1590	18.1	ISUZU 4HF1
105118-5901		48-3672W	DLLA150PN172	105017-1720
105118-5253	8971140150	48-3673	DLLA156PN121	105017-1210	18.1	ISUZU 4HF1
105118-6041	8971198110	48-3673A	DLLA154PN185	105017-1850	18.1	ISUZU 4HG1
105118-6051	8971198120	48-3673B	DLLA154PN186	105017-1860	18.1	ISUZU 4HF1
105118-6460	8971489600	48-3673H	DLLA146PN218	105017-2180	21.6	ISUZU 4HE1-TC
105118-6480	8971741120	48-3673J	DLLA146PN220	105017-2200	18.1	ISUZU 4HF1-2
105118-6381	8971449971	48-3673L	DLLA152PN222	105017-2220	18.1	ISUZU 4HJ1
105118-6461	8971489601	48-3673M	DLLA146PN218	105017-2181	21.6	ISUZU 4HE1-X
105118-5792	8971140170	48-3673U	DLLA160PN159	105017-1590	18.1	ISUZU 4HF1
105118-5700		48-3860	DLLA161PN109	105017-1090	18.1	ISUZU 6HE1
105118-5093		48-3860F	DLLA155PN111	105017-1111
105118-5702	8943947871	48-3862	DLLA161PN109	105017-1090	18.1	ISUZU 6HE1
105118-5703		48-3862	DLLA161PN109	105017-1090
105118-6091	8943959231	48-3862H	DLLA157PN190	105017-1900	22.1	ISUZU 6HE1TC
105118-6092	8943959232	48-3862H	DLLA157PN190	105017-1900	22.1	ISUZU 6HE1-TCN
105118-5811		48-3910	DSLA146PN900	105017-9000
105118-5815	8943946064	48-3914	DSLA146PN900	105017-9000	21.6	ISUZU 6HE1TC
105118-5817	8943946066	48-3915	DSLA146PN900	105017-9000	21.6	ISUZU 6HE1TC
105118-5961	16600Z6001	48-4001M1	DLLA162PN176	105017-1760	17.7	NISSAN DIESEL D539X
105118-6730	16600Z5709	48-4330H4	DSLA140PN915	105017-9150	19.6	NISSAN DIESEL FE6TC
