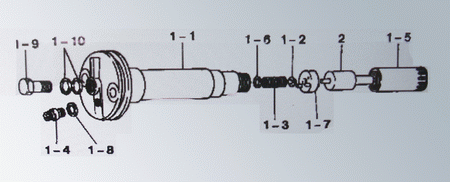

Product Information - DENSO Nozzle - KOMATSU


TOYOTA HINO MITSUBISHI MAZDA DAIHATSU KOMATSU
KUBOTA JOHN DEERE YAMAHA TICO ISHIKAWAJIMA ISUZU
ISEKI HYUNDAI MITSUI DEUTZ VOLVO YANMAR


KOMATSU...

Nozzle holder assembly Part number MFR number Nozzle-holder Part number Nozzle Part number Nozzle Type designation Nozzle opening presssure Application
093500-0190 KOMATSU SA6D105
093500-0511 61101-33100 093100-0511 093400-0111 125-130 KOMATSU 4D120
093500-0521 61101-33200 093100-0521 093400-0111 125-130 KOMATSU 4D120 /S4D120
093500-0540 093400-0111 125-130 KOMATSU 6D115
093500-1521 093100-0191 093400-0540 DN12SD12A 175-180 KOMATSU 6D125
093500-1530 61141-13100 093100-1530 093400-0690 DN15SDNK1C 145-150 KOMATSU 4D130 /S4D130
093500-1750 61421-13100 093100-1750 093400-0010 DN4SD24 125-130 KOMATSU 2D94
093500-2220 61341-13300 093100-2220 093400-0980 DLLA152S32.35 ND98 230-240 KOMATSU 4D105
093500-2360 61341-23100 093100-2361 093400-1341 DLLA142S344 ND134 225 KOMATSU 4D105
093500-2520 093100-2520 093400-5030 DLLA160P3 180-190 KOMATSU 4D31
093500-2710 61501-13101 093100-2710 093400-1600 DLLA155SND160 230-240 KOMATSU 6D125
093500-2820 093100-2820 093400-1710 DLLA160SND171 225-233 KOMATSU 6D125
093500-2830 62041-13200 093100-2830 093400-5080 DLLA152P8 185-195 KOMATSU 4D95L
093500-3080 62121-13101 093100-3082 093400-1800 DLL155SND180 255-265 KOMATSU SA6D140
093500-3110 61511-13200 093100-3110 093400-1820 DLLA155SND182 255-265 KOMATSU S6D125
093500-3160 62021-23200 093100-3160 093400-1630 DN0SDND163 125-133 KOMATSU 4D95S
093500-3540 61621-33301 093100-3540 093400-2040 DLLA160SND204 265-273 KOMATSU SA6D170 /S6D170
093500-3610 61511-13300 093100-3610 093400-1600 255-265 KOMATSU S6D125
093500-3620 62121-13600 093100-3620 093400-2090 DLLA150SND209 255-265 KOMATSU SA6D140
093500-3632 62121-13301 093100-3632 093400-2100 DLLA155SND210 255-265 KOMATSU SA6D117
093500-3770 61521-13400 093100-3770 093400-2120 DLLA160SND212 255-260 KOMATSU SA6D117
093500-3830 61521-13500 093100-3830 093400-2150 DLLA145SND215 255-265 KOMATSU SA6D125
093500-3880 62041-33100 093100-3880 093400-5510 DLLA152P51 205-215 KOMATSU 4D95L
093500-4070 62021-33201 093100-4070 093400-5600 DLLA152P60 230-240 KOMATSU 4D95S
093500-4130 61521-13700 093100-4130 093400-2230 DLLA155SND223 255-265 KOMATSU SA6D117
093500-4240 62221-13100 093100-4240 093400-5690 DLLA152P69 270-280 KOMATSU SA6D108
093500-4290 61511-33200 093100-4290 093400-1820 DLLA155SND182 255-265 KOMATSU S6D125
093500-4703 62121-53402 093100-4703 093400-2930 DLLA155SND293 255-265 KOMATSU SA6D125
093500-4950 62021-33202 093100-4950 093400-5900 DLLA154P90 230-240 KOMATSU 4D95S
093500-5370 62221-53100 093100-5370 093400-6130 DLLA142P613 270-280 KOMATSU 6M108A-1 /SA6D10
093500-6060 62221-33300 093100-6060 093400-6430 DLLA140P643 270-280 KOMATSU SA6D108E
093500-6080 61501-23200 093100-6080 093400-3010 DLLA150SND301 255-265 KOMATSU 6D125
093500-6090 61511-23100 093100-6090 093400-3020 DLLA150SND302 255-265 KOMATSU S6D125
093500-6450 62221-53200 093100-6450 093400-6700 DLLA142P670 270-280 KOMATSU 6D108 /SA6D108
093500-7540 62221-33500 093100-7540 093400-7900 DLLA140P790 270-280 KOMATSU SAA6D018E-2



Chinahanji Power Co.,Ltd is a manufacturer specialist in diesel engine parts.Our major products are Ve Pump,diesel injection parts, diesel nozzle,diesel fuel injection system,and the interrelated products (such as Head Rotor,Feed Pump ,Cam Plate, Drive Shaft , Magnet Valve , etc.),Diesel Plunger(A ,AS,P,PS7100,P8500,MW type, etc.) ,Diesel Nozzle (Dn,DNOPDN,S,SN,PN and so on.),Delivery Valve,Cat Pencil Nozzles and so on.
